Cables
AIRCRAFT CABLE

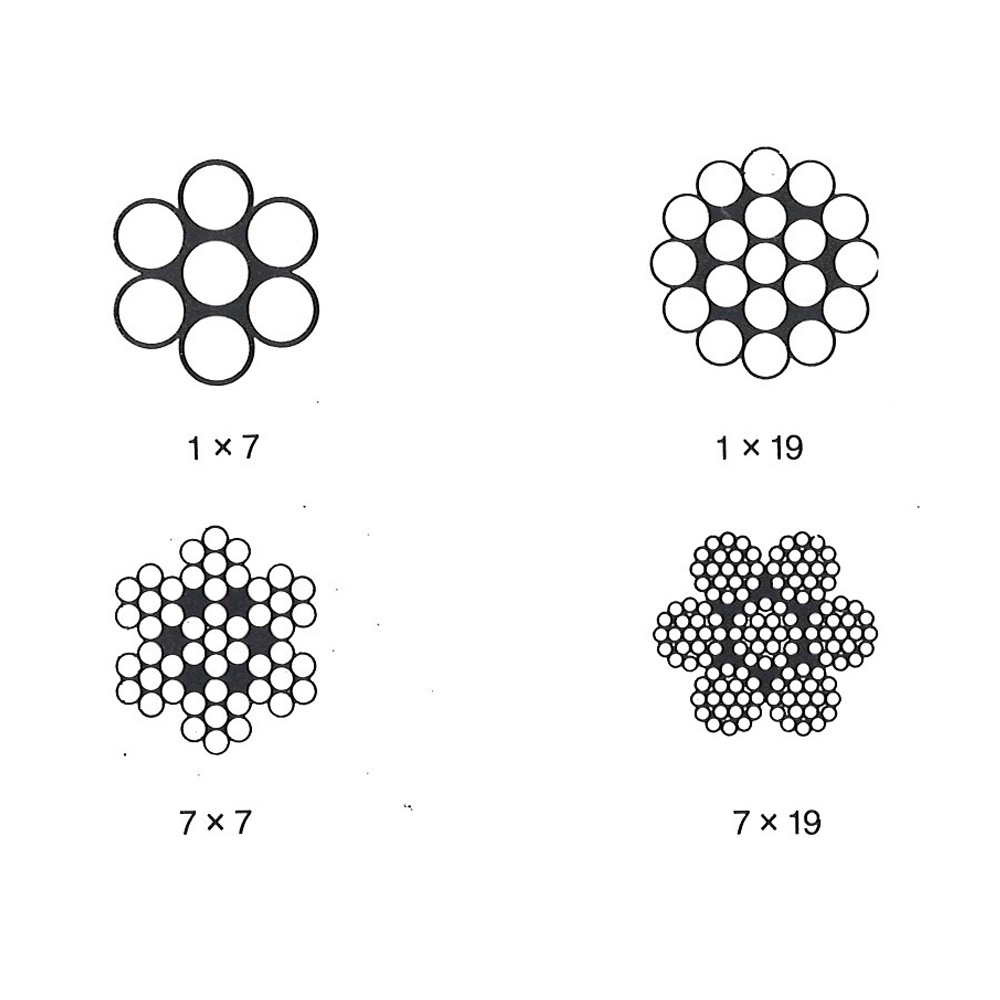

Quality Galvanized and Stainless Steel Cable, fully performed, complying with MIL. SPEC., available in 1 x 19 and 1 x 7 for static or rigid applications, and 7 x 7 or 7 x 19 for required flexibility.

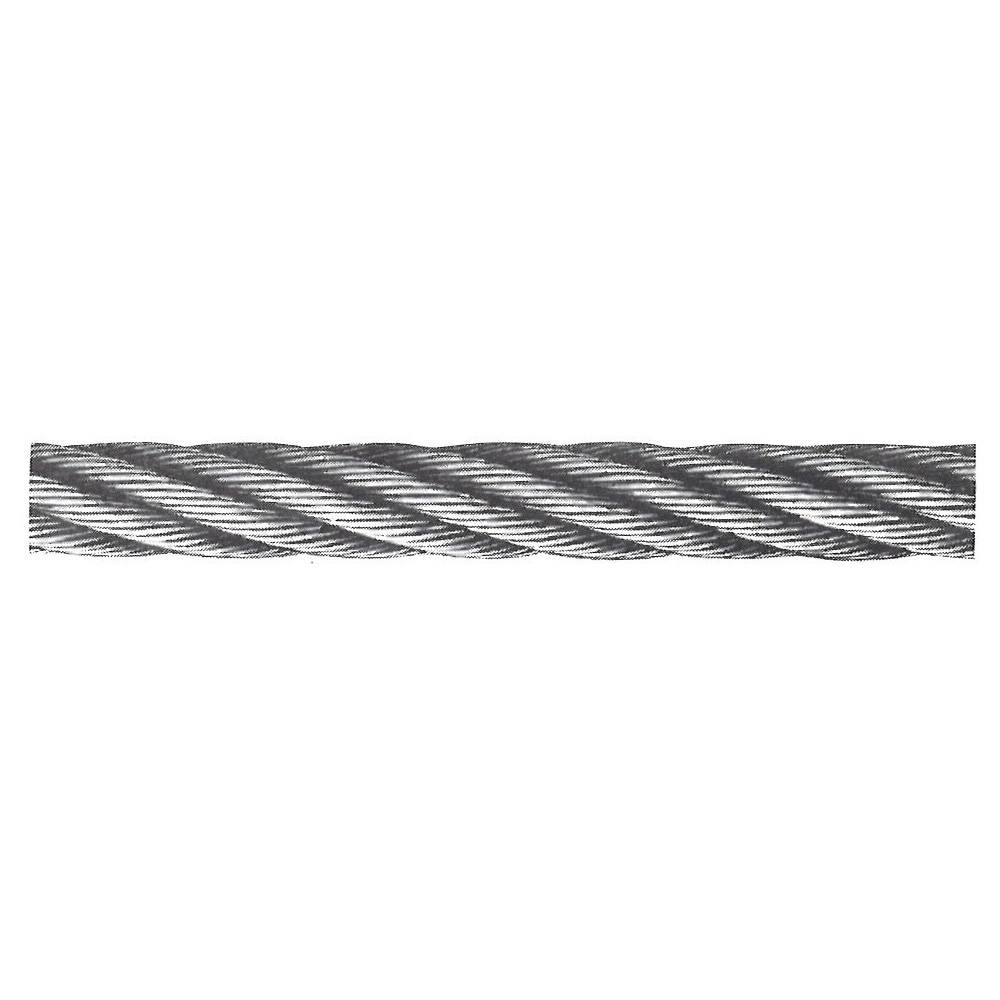

● 7 x 19 Extra flexible
| Diameter in Inches | Minimum Breaking Strength in Lbs. | Approximate Weight in Lbs.
Per 100 Ft. |
|
|---|---|---|---|
| Galvanized | Stainless Steel | ||
| 3/32
1/8 5/32 |
1,000
2,000 2,800 |
920
1,760 2,400 |
1.74
2.90 4.50 |
| 3/16
7/32 1/4 |
4,200
5,600 7,000 |
3,700
5,000 6,400 |
6.50
8.60 11.00 |
| 5/16
3/8 |
9,800
14,400 |
9,000
12,000 |
17.30
24.30 |

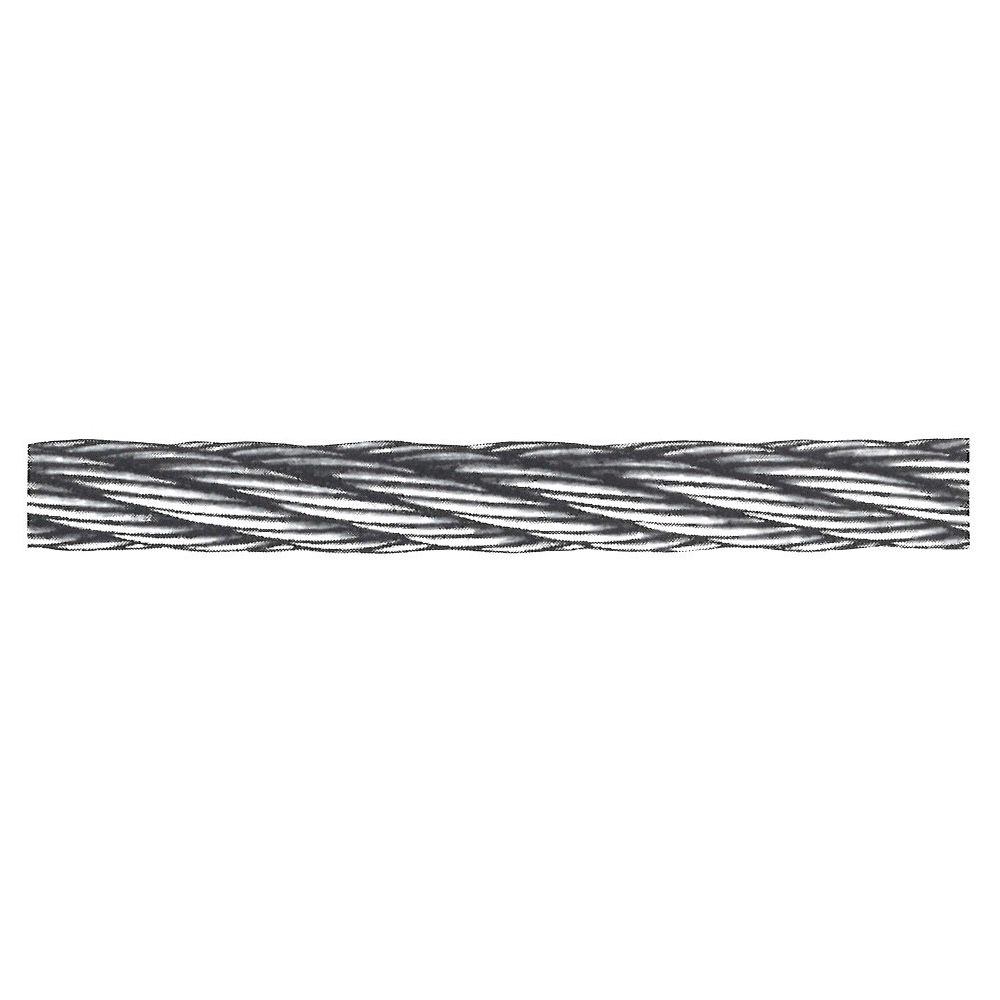

● 7 x 7 Flexible
| Diameter in Inches | Minimum Breaking Strength in Lbs. | Approximate Weight in Lbs.
Per 100 Ft. |
|
|---|---|---|---|
| Galvanized | Stainless Steel | ||
| 1/16
3/32 1/8 |
480
920 1,700 |
480
920 1,700 |
0.75
1.60 2.80 |
| 5/32
3/16 1/4 |
2,600
3,700 6,100 |
2,400
3,700 6,100 |
4.30
6.20 10.60 |

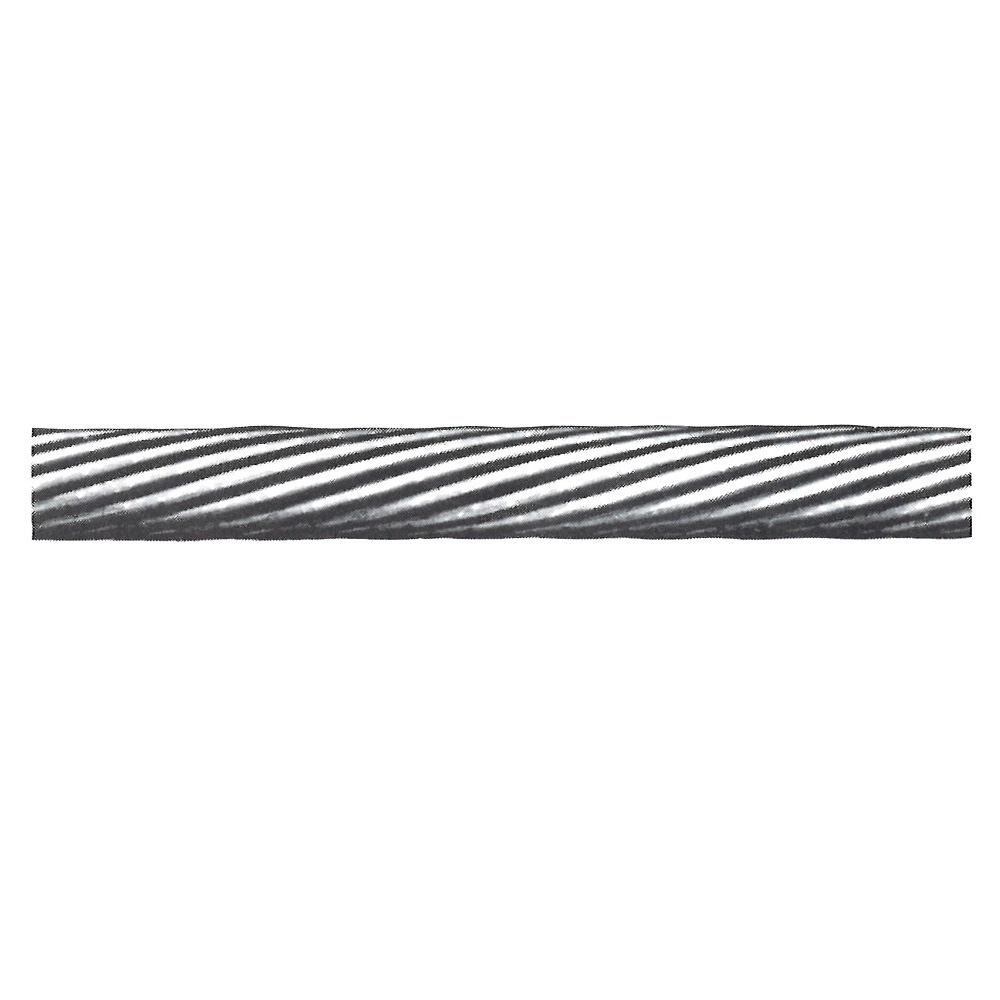

● 1 x 19 Non-Flexible
| Diameter in Inches | Minimum Breaking Strength in Lbs. | Approximate Weight in Lbs.
Per 100 Ft. |
|
|---|---|---|---|
| Galvanized | Stainless Steel | ||
| 1/16
5/64 3/32 |
500
800 1,200 |
500
800 1,200 |
0.85
1.40 2.00 |
| 7/64
1/8 9/64 |
1,600
2,100 2,800 |
1,600
2,100 2,800 |
2.70
3.50 4.50 |
● Plastic Coated Cable
| Cable Grade | Cable Bare Inches | Approximate Coated Inches | Weight Lbs./100 Ft. |
|---|---|---|---|
| 7 x 7
Galvanized |
1/16 | 3/32
1/8 |
0.95
1.30 |
| 3/32 | 5/32
3/16 |
2.30
2.70 |
|
| 1/8 | 3/16 | 3.70 | |
| 7 x 19
Galvanized |
1/8 | 3/16 | 3.75 |
| 3/16 | 1/4
5/16 |
8.00
9.40 |
|
| 1/4 | 5/16
3/8 |
13.50
15.30 |
● Stainless Steel Aircraft Cable
| Construction | Diameter Inches | Minimum Breaking Strength in Lbs. | Weight / 100 Ft. in Lbs. |
|---|---|---|---|
| 1 x 19 | 1/16
5/64 3/32 7/64 1/8 9/64 |
500
800 1,200 1,600 2,100 2,800 |
0.85
1.40 2.00 2.70 3.50 4.50 |
| 7 x 17 | 1/16
3/32 1/8 |
480
920 1,700 |
0.75
1.60 2.80 |
| 7 x 19 | 3/32
1/8 5/32 3/16 1/4 5/16 3/8 |
920
1,700 2,400 3,700 6,400 8,000 12,000 |
1.70
2.80 4.50 6.50 11.00 17.30 24.30 |

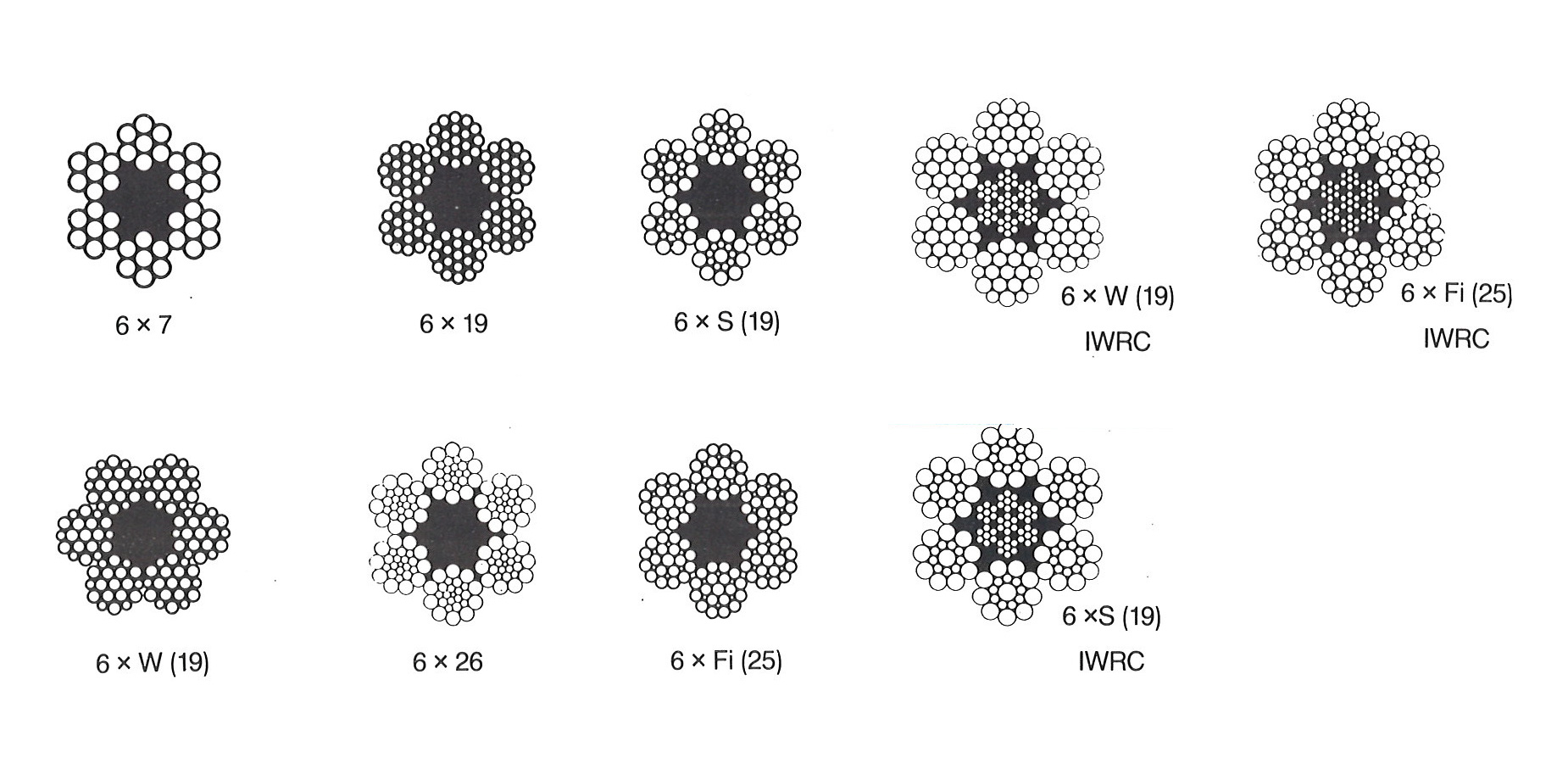

● Wire Rope Federal Specs. RR-W-410
